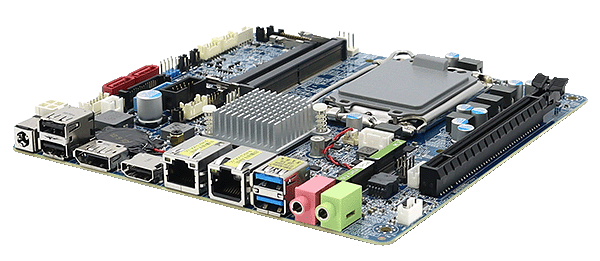

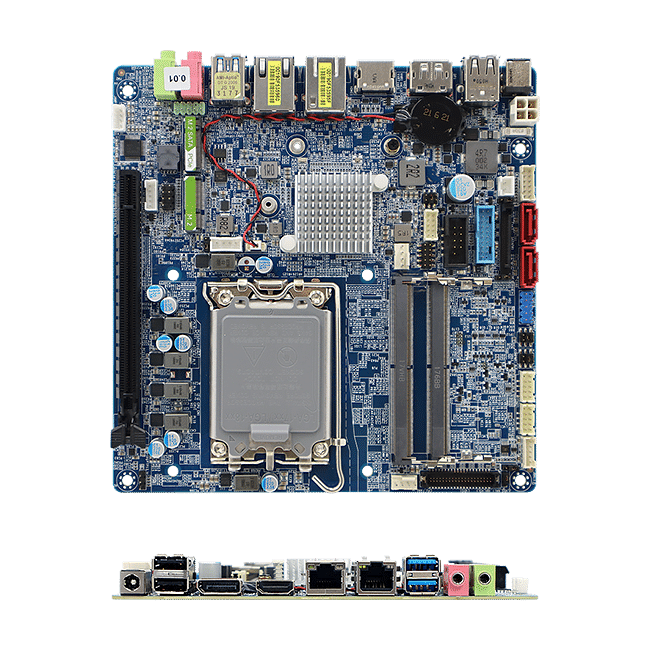

- P/N: 71852
- LGA 1700 socket supports 12th/13th/14th Gen Intel® Core™ i 9/7/5/3 Processor, up to 65W, codenamed Alder Lake/Raptor Lake/Raptor Lake Refresh
- Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)
- 2 x SODIMM sockets support Dual Channel DDR5 memory speed up to 5600MHz, up to 64GB
- Intel® H610E PCH, x4 Gen4 DMI
- HDMI 1.4b 4K@30Hz, Dual Mode DisplayPort 1.2a 4K@60Hz, 18/24-bits Dual Channel LVDS, Optional eDP
- Gen 4 PCIe x16, M.2 E-Key CNVi support, M.2 M-Key NVMe support
- 4 x USB 3.2, 6 x USB 2.0
- 3 x COM, 2 x SATA III
- TPM 2.0
- Intel® I225-LM Ethernet Controller (2.5GbE)
- Thin Mini-ITX
- 12V - 24V Wide Range DC-in
